Key attributes
IP Rating
IP65
Warranty(Year)
2-Year
Lighting solutions service
Project Installation
Place of Origin
Zhejiang, China
Application
ROAD
Color Temperature(CCT)
6000K (Daylight Alert)
Power Supply
Solar
Light Source
LED
Brand Name
OEM
Model Number
WD-168
Beam Angle(°)
Type-11
Input Voltage(V)
DC 6V
Lamp Luminous Efficiency(lm/w)
210
Lamp Luminous Flux(lm)
2000
Working Temperature(℃)
-30 – 50
Color Rendering Index(Ra)
70
Certification
EMC, rohs, ce
Support Dimmer
Yes
Lifespan (hours)
25000
Product name
AIO Solar Street Light
Power
10W/20W
Material
Die-casting Aluminum
Color Temperature(CCT)
6000K (Daylight Alert)
Solar panel
Monocrystalline Silicon
IP Grade
IP65 Wateproof
Battery
LiFePO4 3.2V
Feature
High Light Efficiency
Installation Height
4-6m
Solar panel power
25W/5V
Working Time (hours)
30000
CRI (Ra>)
70
Packaging and delivery
Selling Units
Single item
Product Description

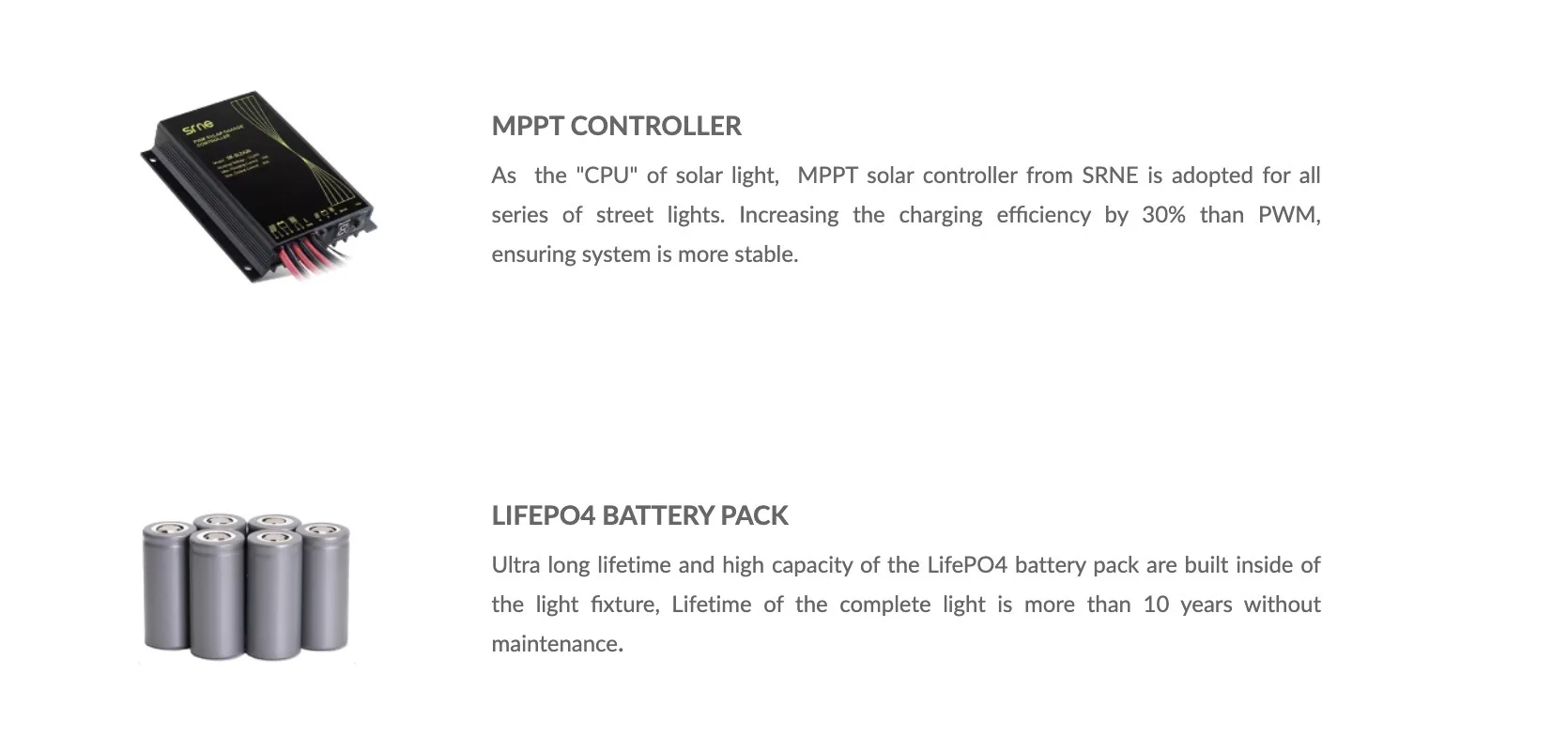

WD168 is a compact solar light that can provide all-around lighting, suitable for poles of 4 meters to 6 meters, and various installation environments like car parking areas, pedestrian paths, etc. It can be mounted on a straight bar or plugged into the arm of the pole. The led engine is designed with an inclined angle to improve the utilization of light. It has a built-in MPPT solar controller with a charging efficiency of up to 97% .
KEY SPECIFICATION
| Max LED power | 15W-20W |
| Output lumens | 2000lm |
| Solar panel | 5V 25W |
| Battery pack | 3.2V 25AH |
| Light color | Daylight |
| Charge time | 5 hours |
| Autonomy | 3-4 Days |
