LED Street Light, Street Light
MODEL NO:WD-M807 New Arrival High Quality IP65 LED Street Lamp Waterproof Aluminum Body 50W 60W Solar Power SMD Chip ROHS FCC Certified Road
Integrated housing design increases heat dissipation during working condition. Unique back design effectively enhances cleaning and water filtration under severe operating conditions.
Reserved interface on back of housing for smart control like PLC, ZIGBEE, GPRS, NB-LOT and LoRa.
Series street lights are utilizing America BRIDGELUX 45mil high power LED luminous source,providing excellent lumen output ,long-lasting stability and spendid sight.
Key attributes
Color Temperature(CCT)
3000-6500K
Warranty(Year)
5-Year
Lighting solutions service
Lighting and circuitry design
Place of Origin
Zhejiang, China
Application
street
IP Rating
IP65
Light Source
LED
Brand Name
WADE
Model Number
WD-M807
Beam Angle(°)
120
Input Voltage(V)
AC100-240V
Lamp Luminous Efficiency(lm/w)
100
Lamp Luminous Flux(lm)
6000
Working Temperature(℃)
-30~+45
Color Rendering Index(Ra)
80
Certification
ce, EMC, GS, LVD, VDE
Power Supply
AC
Support Dimmer
NO
Lifespan (hours)
50000
Product Name
60W LED Street Light
Power
30w/40w/50w/60w
LED Light Source
SMD
Keyword
Solar Street Waterproof IP65
Material
Aluminum Die Casting
Color Temperature(CCT)
6500
Feature
Water-proof
Power Factory
>0.95
Frequency Range
50/60Hz
purpose
Road urban lighting
Working Time (hours)
50000
CRI (Ra>)
80
Packaging and delivery
Packaging Details
A floodlight, a carton
Selling Units
Single item
Single package size
55.2X25X15 cm
Single gross weight
3.000 KG
Packaging examples
Supply capacity
Supply Ability
10000 units per Month
Product Description
Detailed Images
The WD8104 Series street lights are utilizing America BRIDGELUX 45mil high power LED luminous shouce ,prooviding excellent lumen output ,long-lasting stability and spendid sight.

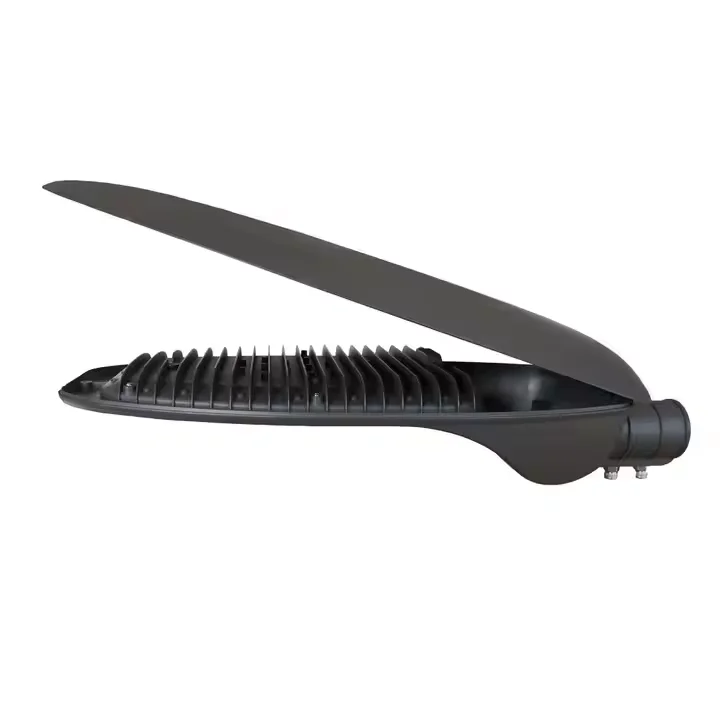

Integrated housing design increases heat dissipation during working condition. Unique back design effectively enhances cleaning and water filtration under severe operating conditions.

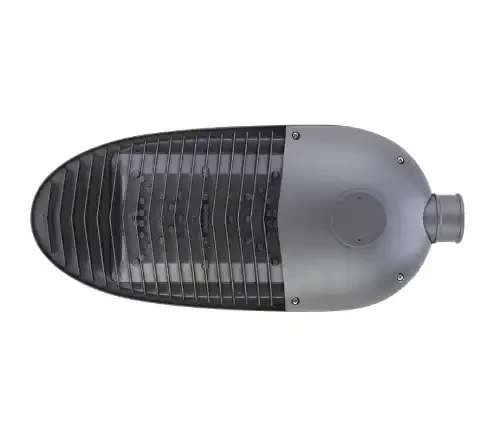

Reserved interface on back of housing for smart control like PLC, ZIGBEE, GPRS, NB-LOT and LoRa.
Product Presentation
|
Wattage
|
Size MM
|
TA
|
LED Type
|
|
|
WD-M807A
|
30W
|
525*230*112mm
|
-20-+45
|
LUMILEDS
|
|
WD-M807B
|
40W
|
|||
|
WD-M807C
|
50W
|
|||
|
WD-M807D
|
60W
|
| Weight | 1 kg |
|---|---|
| Color | White |
| Emitting Color | White |
| Lamp Power(W) | 30, 40, 50, 60 |
